200 Tons Motor Operated Hydraulic Workshop Press

WorkshopPress.com manufactures motor operated hydraulic workshop presses with a capacity of 200 Tons.

PRODUCT CODE:WSP-PWTA200

GENERAL FEATURES

Workshop Presses are standard-type presses you can find ready for the shipment in our factory most of the time. However, we can customize the workshop presses according to the customer request. So every detail and property of the workshop press can be changed.

STANDARD EQUIPMENT

  • Chrome Plated Cylinder
  • Welded Steel Frame
  • Oil Pressure Gauge
  • Pressure Adjustment
  • User Manual
  • 2 Years of Warranty
  • CE Certification

OPTIONAL EQUIPMENT

  • Pressure Regulator
  • V Block
  • Automatic Control
  • Foot Pedal
  • Table

PHOTOS

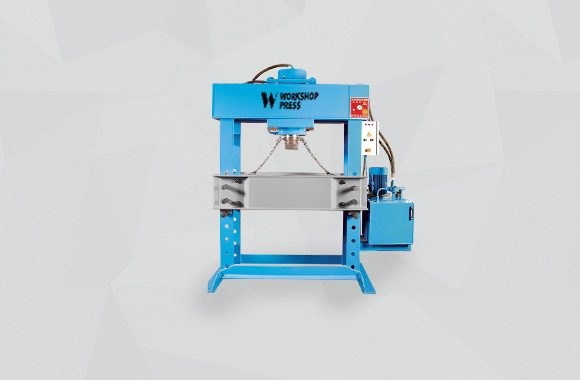

Photos of 200 Tons Motor Operated Hydraulic Workshop Press

  • HIGH QUALITY PRODUCTION

    We produce every workshop press with the same high quality standards.
  • WIDE USAGE AREAS

    It is used in a wide range of production

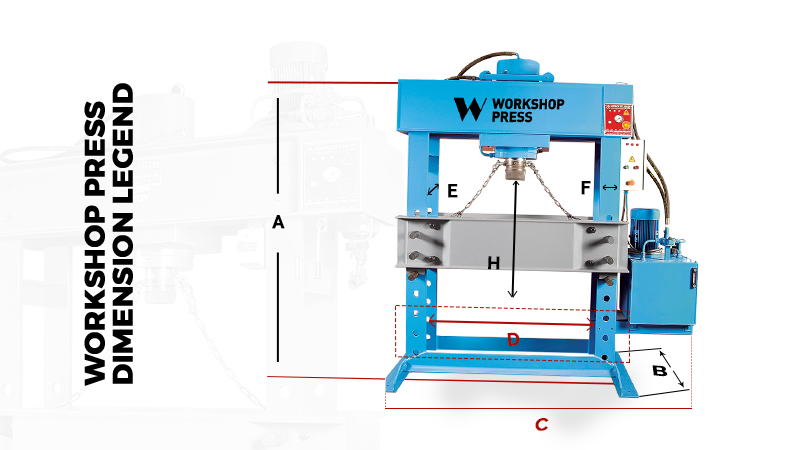

TECHNICAL PROPERTIES

WORKSHOP PRESS
200 TON MOTOR OPERATED
PROPERTY
(Dimension / Weight / Volume etc.)
A (mm) 2470
B (mm) 1200
C (mm) 2300
D (mm) 1300
E (mm) 450
F (mm) 160
G (mm) 35
H (mm) 900
Stroke (mm) 400
Engine (hp) 10.0
Pump (Lt.) 22.0
Weight (kg.) 2350



Why don't you get an offer for 200 Tons Motor Operated Workshop Press?
